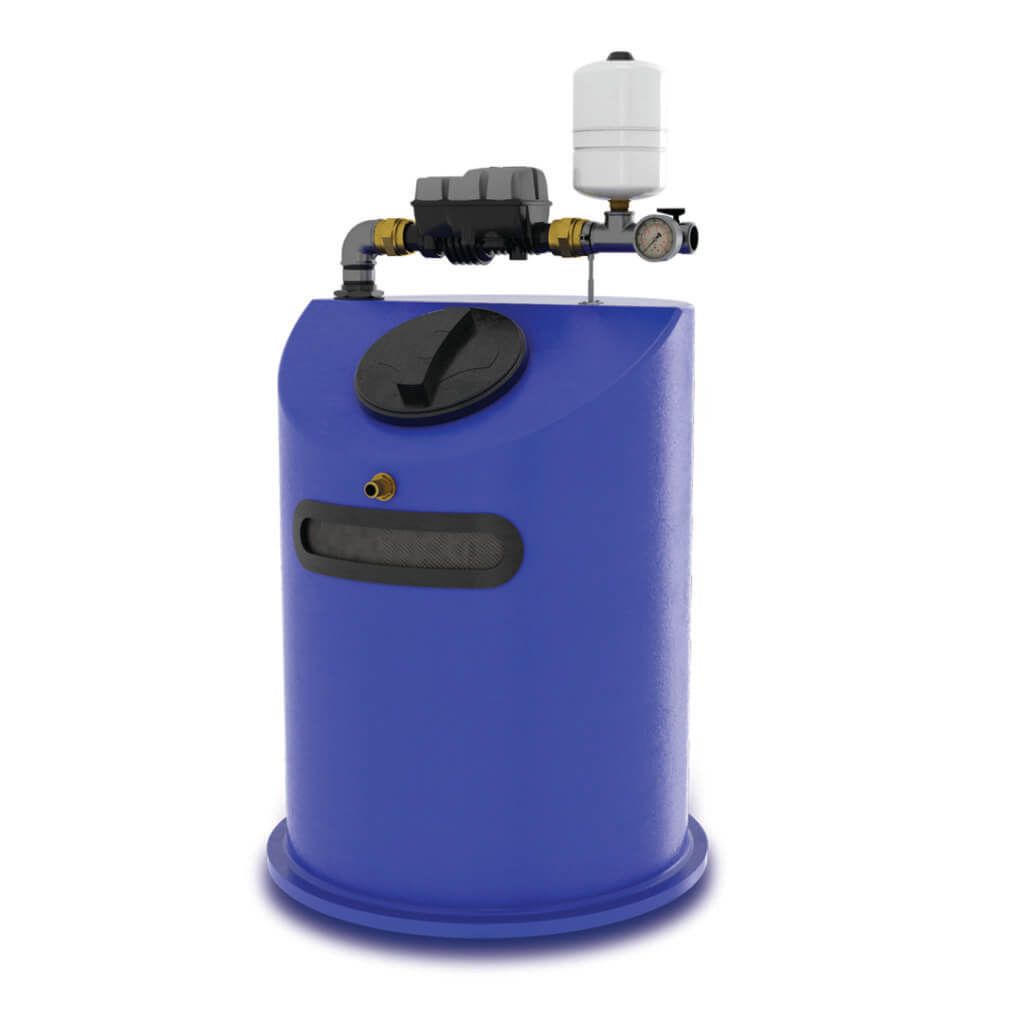

MYBOOST CAT5 Cold Water Booster Set
The MYBOOST CAT5 Cold Water Booster Set is specifically designed to meet the strict requirements for Category 5 (CAT5) water systems. Ideal for commercial applications such as hotels, hospitals, or large residential buildings where water quality and pressure need to meet specific regulatory standards, the CAT5 set ensures advanced filtration and pressure regulation for safe and reliable water distribution.
Key Features:
- Compliant with Category 5 (CAT5) standards, making it ideal for systems that require higher-quality water and precise pressure regulation.
- Advanced filtration systems ensure the water is clean and free from contaminants, meeting the highest standards of water quality.
- Suitable for large-scale commercial applications where water quality is critical.
- Provides precise control over water pressure and distribution.
- Ensures compliance with stringent regulations for water quality and pressure control in high-demand environments.
- Advanced filtration and pressure regulation improve the overall water safety and performance.
- Ideal for use in hospitals, schools, or other facilities requiring consistent water quality standards.
- High efficiency, reducing operational costs while maintaining optimal performance.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Features & Specification
Accordion Content
- WRAS approved pump and tank
- Digital status display for alerts and reporting
- GRP water storage tank as standard
- Variable speed stainless steel submersible pump
- High flow inlet valve
- 25mm tank insulation
- Common alarm volt free contact
- Low water level pump protection device
- Bluetooth connectivity
- Single high-performance pump
- 200 litre and 300 litre options available
- Thermosure insulation
- Dry-run protection as standard
- British Water compliant
- Digital display for alerts & reporting
- Easy access and installation
- Variable speed inverter
- WRAS approved high-flow ball valve
- Volt free contacts
Flow Range (Single Pump): 1.3 – 2.2 litres/sec
Flow Range (Twin Pump): 2.6 – 4.4 litres/sec
Pressure Range: 2.5 – 8 bar
Max System Pressure: 10 bar
Max System Temperatue: 23°C
Inlet Size: 22mm – 28mm BSP
Outlet Size: 1” or 1¼” BSP
Power Supply: 230 / 1 / 50
Control Type: Wireless Bluetooth Technology
Tank Construction: 25mm insulated GRP
Pumps: AISI 304 stainless steel
Nominal Capacity: 200
Actual Capacity: 150
Pump Configuration: Single
Inlet Size: 15mm
Diameter: 610mm
Height: 1175mm
Nominal Capacity: 300
Actual Capacity: 250
Pump Configuration: Single
Inlet Size: 15mm
Diameter: 690mm
Height: 1515mm
For technical charts and capacity and sizing details, please refer to the product brochure.
