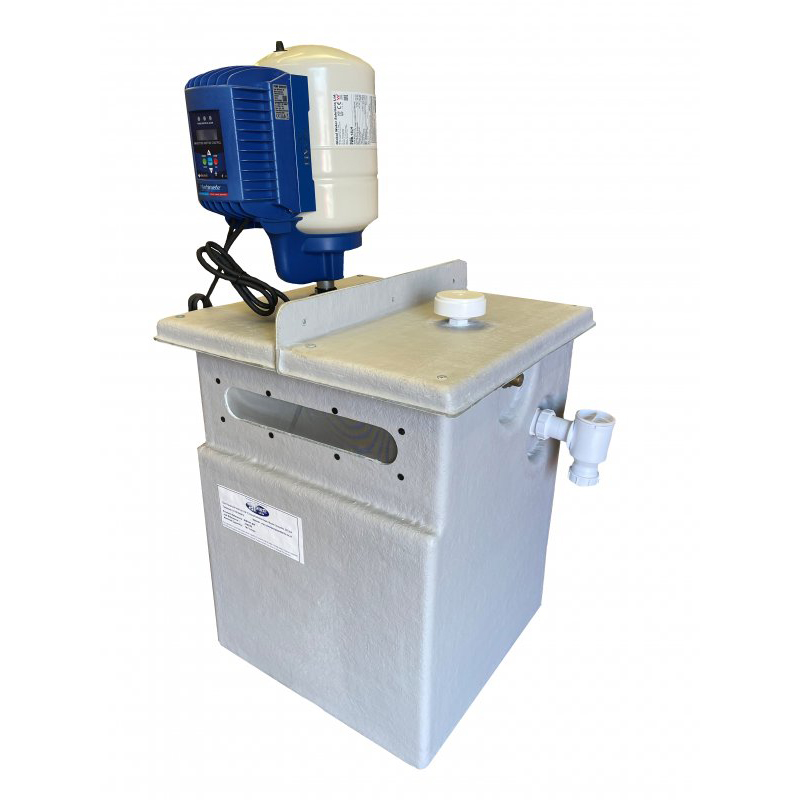

MYBOOST GRP Insulated CAT5 Cold Water Booster Set
The MYBOOST GRP Insulated CAT5 Cold Water Booster Set is specifically designed to meet the strict requirements for Category 5 (CAT5) water systems while be able to be situated outside and be protected from harsh weather conditions. Ideal for commercial applications such as hotels, hospitals, or large residential buildings where water quality and pressure need to meet specific regulatory standards, the CAT5 set ensures advanced filtration and pressure regulation for safe and reliable water distribution.
Key Features:
- Compliant with Category 5 (CAT5) standards, making it ideal for systems that require higher-quality water and precise pressure regulation.
- Advanced filtration systems ensure the water is clean and free from contaminants, meeting the highest standards of water quality.
- Suitable for large-scale commercial applications where water quality is critical.
- Provides precise control over water pressure and distribution.
- Can be fitted outside if space is restricted in the plant room.
- Insulated tank protects from harsh weather conditions.
- Ideal for use in hospitals, schools, or other facilities requiring consistent water quality standards.
- High efficiency, reducing operational costs while maintaining optimal performance.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Features & Specification
Accordion Content
- Up to 375 litre capacity
- Single phase 230v supply
- 1 Year warranty (terms apply)
- GRP tank
- Cat 5 AB air gap
- Low level protection
- Electronic pressure controller
Model: CAT5 187
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1090mm
Model: CAT5 251
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1340mm
Model: CAT5 305
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1540mm
Model: CAT5 375
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1840mm
Model: CAT5 187V
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1250mm
Model: CAT5 251V
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1500mm
Model: CAT5 305V
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 1700mm
Model: CAT5 375V
kW: 0.75
FLC Amps: 4.8
Inlet Connection (DN1): 3/4”
Overflow Connection (DN2): 1 ¼”
Outlet Connection (DN3): 1”
Width: 670mm
Length: 610mm
Height: 2000mm
For technical charts and capacity and sizing details, please refer to the product brochure.
Not sure which Booster set is right for you?
Fill in our short form below about your different outlets and we will calculate the flow rate and pressure for you. We’ll then get in touch with you to help advise on the best Cold Water Booster Set for your requirements.
Know a few more spec details? Fill out our detailed booster set enquiry form and a member of the team will be in touch with you to discuss your specific needs.
