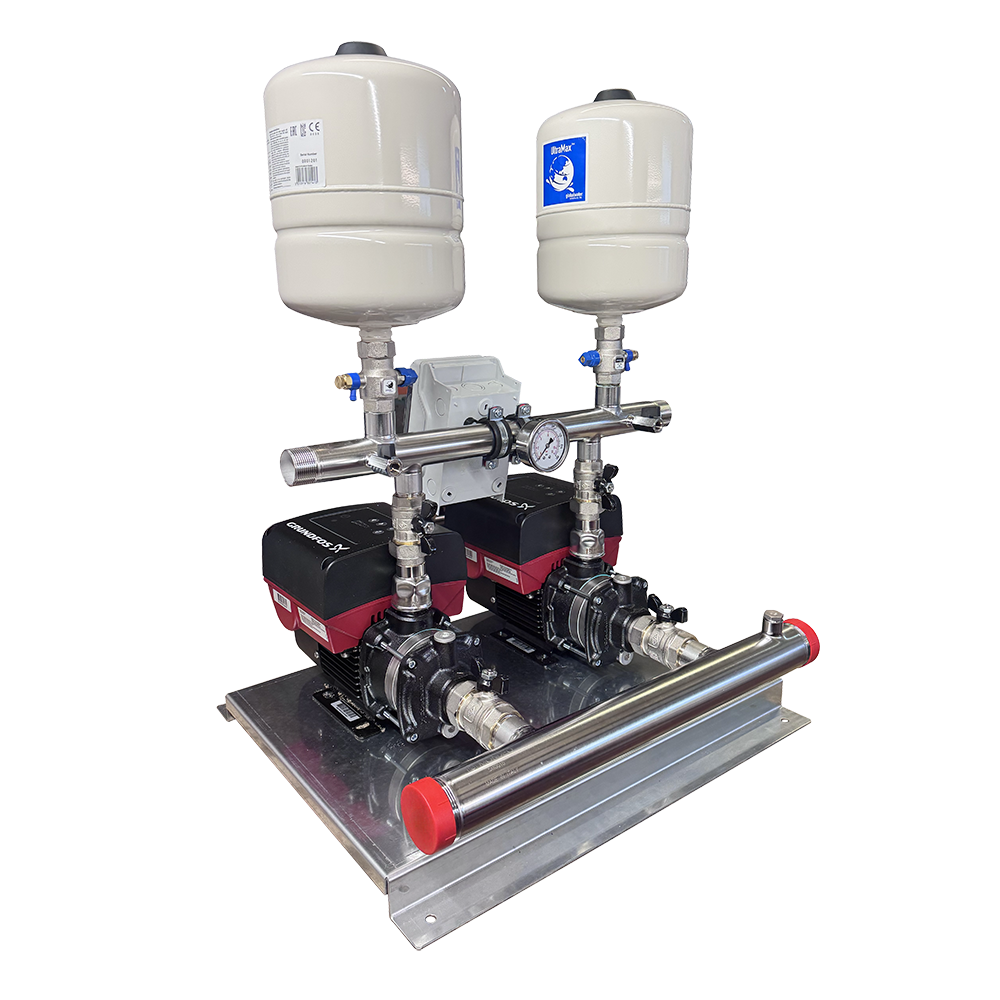

Horizontal Twin Cold Water Booster Set
The MYBOOST Horizontal Twin Cold Water Booster Set offers a more powerful solution for medium to large residential or commercial buildings. This model increases the capacity of your water system by integrating two booster pumps, ensuring higher water flow and more consistent pressure across a wider area.
Key Features:
- Dual pump system for improved water pressure and flow.
- Designed for medium to large-scale residential, commercial, or light industrial properties.
- Reduces pressure fluctuations across the system, even in high-demand scenarios.
- Features a compact horizontal design that fits into spaces where vertical space may be limited.
- Built with corrosion-resistant materials for long-lasting performance.
- Provides greater reliability in systems with moderate water demand.
- Reduces wear on pumps by sharing the workload, extending the lifespan of the system.
- Ideal for use in properties like offices, hotels, or multi-storey residential buildings.
- Improved energy efficiency compared to traditional single-pump systems, with a reduction in operational costs.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Specifications
Accordion Content
Model ref: MyBoost CME 2H 3-3
Max flow rate: 1.5 l/s
Max head: 42 Metres
Inlet/Outlet: 1″ / 1″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 3-5
Max flow rate: 3 l/s
Max head: 68 Metres
Inlet/Outlet: 1″ / 1″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 3-7
Max flow rate: 2.88 l/s
Max head: 96 Metres
Inlet/Outlet: 1″ / 1″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 5-3
Max flow rate: 4.2 l/s
Max head: 42 Metres
Inlet/Outlet: 2″ / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 5-5
Max flow rate: 4.2 l/s
Max head: 70 Metres
Inlet/Outlet: 2″ / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 5-7
Max flow rate: 4.2 l/s
Max head: 98 Metres
Inlet/Outlet: 2″ / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 10-2
Max flow rate: 10 l/s
Max head: 46 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 10-3
Max flow rate: 10 l/s
Max head: 70 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 2H 10-4
Max flow rate: 10 l/s
Max head: 93 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
For technical charts and capacity and sizing details, please refer to the product brochure.
Not sure which Booster set is right for you?
Fill in our short form below about your different outlets and we will calculate the flow rate and pressure for you. We’ll then get in touch with you to help advise on the best Cold Water Booster Set for your requirements.
Know a few more spec details? Fill out our detailed booster set enquiry form and a member of the team will be in touch with you to discuss your specific needs.
