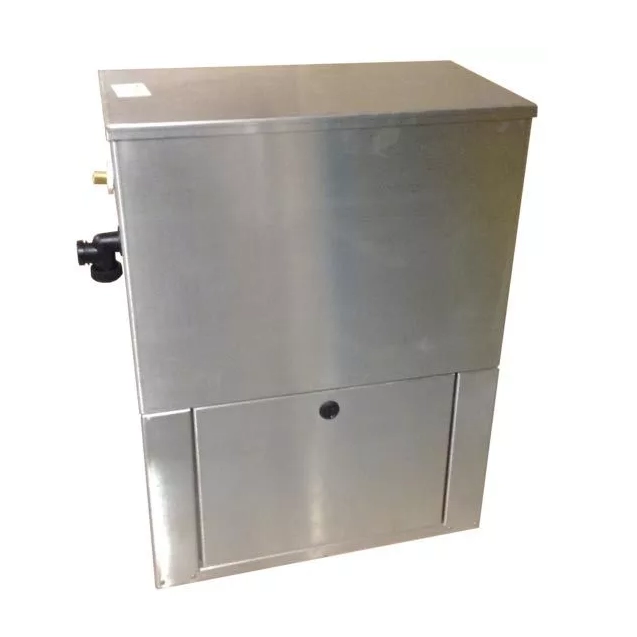

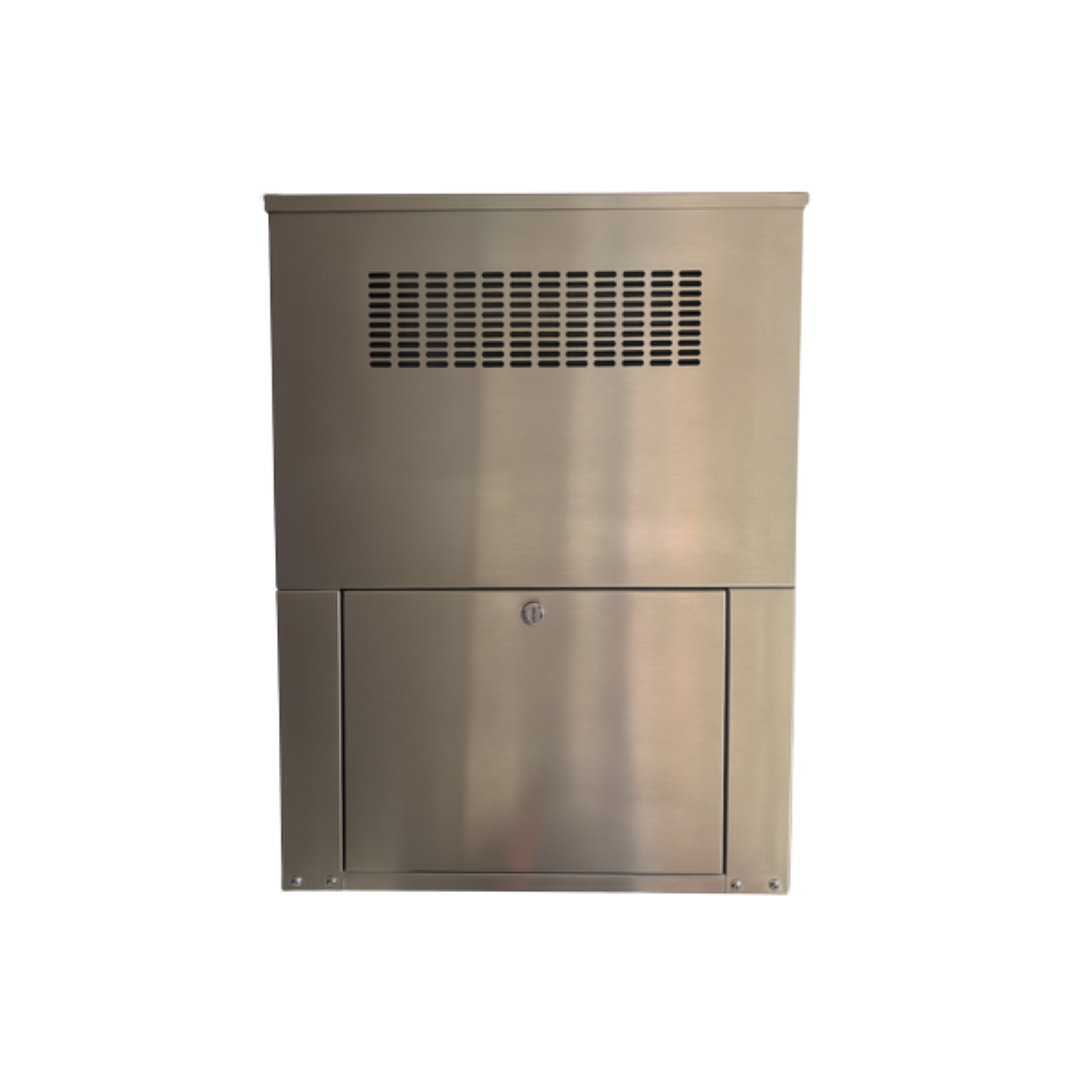

MYBOOST Wall Mounted CAT5 Cold Water Booster Set

The MYBOOST Wall Mounted CAT5 Cold Water Booster Set is specifically designed to meet the stringent requirements for Category 5 (CAT5) water systems, while also offering a compact design for situations where space is limited in plant rooms or other storage areas such as bin stores and washdown areas. Perfect for commercial applications such as hotels, hospitals, or large residential buildings, where maintaining water quality and pressure to meet regulatory standards is crucial. The CAT5 set ensures advanced filtration and pressure regulation, providing safe and reliable water distribution.

Key Features:

  • Compliant with Category 5 (CAT5) standards, ensuring superior water quality and precise pressure regulation.
  • Advanced filtration system guarantees clean, contaminant-free water, meeting the highest standards.
  • Ideal for wash down in bin stores, ensuring hygienic and safe water use in waste management.
  • Perfect for dentists rinsing equipment, providing reliable, contaminant-free water for medical procedures.
  • Suited for school laboratory water supplies, ensuring safe and consistent water quality in educational environments.
  • Provides precise control over water pressure and distribution for efficient and reliable use.
  • Complies with stringent regulations for water quality and pressure control in high-demand settings.
  • Highly efficient, reducing operational costs while maintaining optimal performance in single hosepipe supplies.

Product Applications:

Domestic

Commercial

Industrial

Hospitality

Features & Specification

Accordion Content

Stainless Steel Enclosure: Brushed stainless steel construction provides robust protection against corrosion.
CAT 5 / AB Air Gap: Compliant with Water Supply (Water Fittings) Regulations 1999 for backflow protection, suitable for hazardous liquid applications.
Low Water Protection: Built-in low water cutout prevents dry running. VF variant compatible with external low water devices like float switches (sold separately).
Volt Free Contact: Standard variant: volt-free contact for pump run. VF variant: fault output for BMS system integration and remote monitoring.
Adjustable Cut-in/Cut-out Pressure: VF Controller allows setting specific cut-in/cut-out pressures via user-friendly HMI and seven-segment display.
18 Litre Break Tank: Integrated 18-litre plastic tank eliminates the need for additional water storage.
Wall Mountable: Two mounting eyes on the back of the cabinet for easy internal wall installation.

Rated Power (50/60 Hz): 0.37 kW (0.5 hp)
Full Load Current: 2.5 A
Pump Type: Lowara PABLRM15
Cabinet Material: Stainless Steel
IP Rating (Ingress Protection): IP54
Break Tank Size: 18 Litres
Inlet Connection (Threaded): 15 mm
Outlet Connection (Push Fit): 15 mm
Overflow: 22 mm

For technical charts and capacity and sizing details, please refer to the product brochure.
