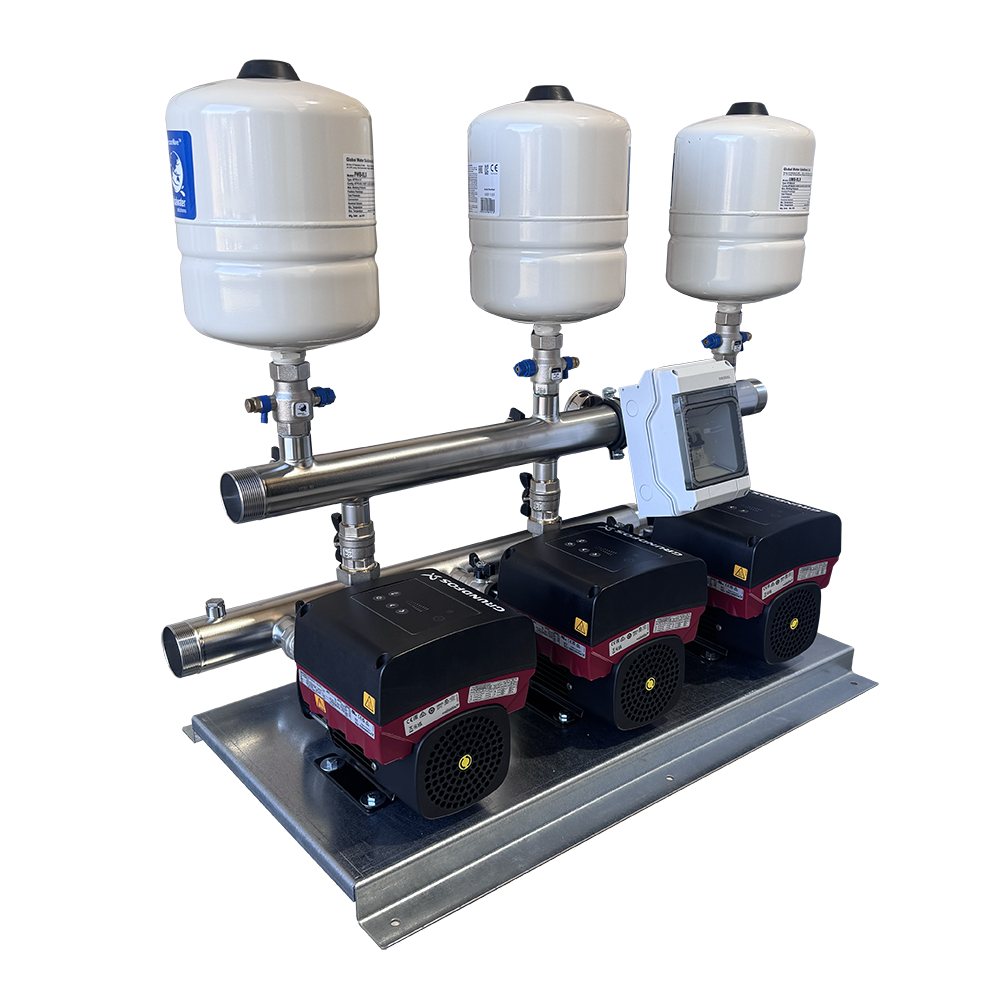

Horizontal Triple Cold Water Booster Set
For large-scale applications, the MYBOOST Horizontal Triple Cold Water Booster Set provides exceptional performance. This system features three pumps to handle high water demand, making it ideal for large commercial buildings, multi-storey developments, or industrial facilities where consistent water pressure is essential.
Key Features:
- Triple pump configuration for maximum flow capacity.
- Ideal for large buildings with high water demand, including high-rise apartments and commercial complexes.
- Features advanced control systems for regulating and balancing pump operation, ensuring energy-efficient performance.
- Optimised for use in high-pressure environments, where maintaining flow across several floors or zones is critical.
- Easy installation with flexibility for horizontal configurations.
- Ensures maximum water pressure and distribution, even during peak usage times.
- Minimises system downtime by offering redundancy; if one pump fails, the others continue to operate seamlessly.
- Provides enhanced system stability and improved pressure management, protecting plumbing systems and appliances from pressure damage.
- Long-term cost savings through efficient pump performance and reduced maintenance needs.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Specifications
Accordion Content
Model ref: MyBoost CME 3H 3-3
Max flow rate: 2.25 l/s
Max head: 42 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 3-5
Max flow rate: 4.5 l/s
Max head: 68 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 3-7
Max flow rate: 4.32 l/s
Max head: 96 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 5-3
Max flow rate: 6.3 l/s
Max head: 42 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 5-5
Max flow rate: 6.3 l/s
Max head: 70 Metres
Inlet/Outlet: 2″ / 2 ½”
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 5-7
Max flow rate: 6.3 l/s
Max head: 98 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 10-2
Max flow rate: 15 l/s
Max head: 46 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 10-3
Max flow rate: 15 l/s
Max head: 70 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost CME 3H 10-4
Max flow rate: 15 l/s
Max head: 93 Metres
Inlet/Outlet: 2 ½” / 2″
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
For technical charts and capacity and sizing details, please refer to the product brochure.
Not sure which Booster set is right for you?
Fill in our short form below about your different outlets and we will calculate the flow rate and pressure for you. We’ll then get in touch with you to help advise on the best Cold Water Booster Set for your requirements.
Know a few more spec details? Fill out our detailed booster set enquiry form and a member of the team will be in touch with you to discuss your specific needs.
