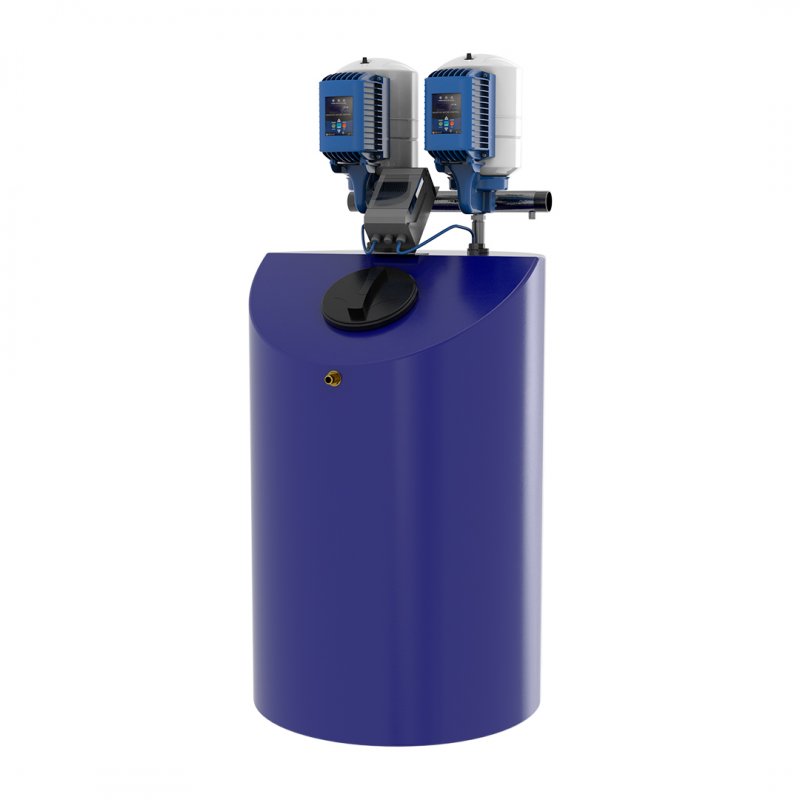

MYBOOST Insulated Cold Water Booster Set
The MYBOOST Insulated Cold Water Booster Set is a bespoke in-tank system designed to maximise space efficiency while delivering consistent water pressure. Utilising submersible pumps housed within a fully insulated MDPE chamber, an industry first in the UK, this advanced system is controlled by variable speed drives (VSDs) for optimal performance. Ideal for light commercial and residential applications, it ensures reliable water flow in compact environments.
Key Features:
- Pressure Boosting: Enhances water pressure for multi-floor homes and large properties, preventing drops during high demand.
- Variable Speed Control: Adjusts flow according to demand, improving efficiency and reducing energy consumption.
- Compact & Quiet Design: Space-saving, low-noise operation for easy installation in confined areas.
- Automatic Operation: Activates when pressure drops, ensuring a consistent and reliable water supply.
- Multi-Storey Performance: Maintains strong pressure on upper floors, ideal for large households and commercial spaces.
- Energy Efficient: Operates only when necessary, minimising power consumption and reducing running costs.
- Durable & Weather-Resistant: Built with high-quality materials, including a fully insulated MDPE chamber, for long-lasting performance.
- Eco-Friendly Construction: Features a recyclable tank and insulation that reduces heat loss, lowering environmental impact.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Features & Specification
Accordion Content
WRAS Approved Insulated Tanks: Ensures compliance with UK water regulations for safety and quality.
Fully Insulated with Thermosure: Advanced thermo-retentive material to maintain liquid temperature, even in sub-zero conditions.
Kiwa REG4 Certified Product: Certified for compliance with stringent safety and quality standards.
Pre-fitted WRAS Approved Fill Valve: Comes with a WRAS approved fill valve for hassle-free installation.
WRAS Approved Pump(s): Ensures safe and compliant pump operation.
Integral Overflow Weir: Designed to manage excess water efficiently.
Digital Display Flow Controller: Provides easy monitoring and control of water flow.
Dry Run Protection with Auto Restart Delay: Protects pumps from damage due to dry running with automatic restart feature.
WRAS Approved Inverter and Vessel: Ensures the inverter and vessel meet regulatory standards for water systems.
Thermosure is an advanced thermo-retentive material made from bonded multi-polymers, rigorously tested under real-world and simulated conditions to maintain resistance against sub-zero temperatures. Each tank chamber undergoes a meticulous three-shot moulding process, ensuring uniform thickness and optimal thermal properties. Its rapid production process allows for fast delivery, with most systems available within 24 hours.
Model: FV40/10S
Mid-Curve Flow: 40 l/min
Mid-Curve Pressure: 4.5 bar
kW Rating: 0.75
Running Current (Amp): 3.8
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” BSP
Outlet: 1″
Overflow Size: 22mm
Dry Weight: 74kg
Model: FV40/15S
Mid-Curve Flow: 40 l/min
Mid-Curve Pressure: 6.5 bar
kW Rating: 1.1
Running Current (Amp): 5.2
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” BSP
Outlet: 1″
Overflow Size: 22mm
Dry Weight: 76kg
Model: FV80/15S
Mid-Curve Flow: 60 l/min
Mid-Curve Pressure: 4.5 bar
kW Rating: 1.1
Running Current (Amp): 5.4
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” BSP
Outlet: 1″
Overflow Size: 22mm
Dry Weight: 78kg
Model: FV80/20S
Mid-Curve Flow: 60 l/min
Mid-Curve Pressure: 5.8 bar
kW Rating: 1.5
Running Current (Amp): 6.1
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” BSP
Outlet: 1″
Overflow Size: 22mm
Dry Weight: 80kg
Model: FV40/10T
Mid-Curve Flow: 80 l/min
Mid-Curve Pressure: 4.5 bar
kW Rating: 2 x 0.75
Running Current (Amp): 2 x 3.8
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” – 1″
Outlet: 1 ¼”
Overflow Size: 22mm
Dry Weight: 94kg
Model: FV40/15T
Mid-Curve Flow: 80 l/min
Mid-Curve Pressure: 6.5 bar
kW Rating: 2 x 1.1
Running Current (Amp): 2 x 5.2
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” – 1″
Outlet: 1 ¼”
Overflow Size: 22mm
Dry Weight: 96kg
Model: FV80/15T
Mid-Curve Flow: 120 l/min
Mid-Curve Pressure: 4.5 bar
kW Rating: 2 x 1.1
Running Current (Amp): 2 x 5.4
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” – 1″
Outlet: 1 ¼”
Overflow Size: 22mm
Dry Weight: 98kg
Model: FV80/20T
Mid-Curve Flow: 120 l/min
Mid-Curve Pressure: 5.8 bar
kW Rating: 2 x 1.5
Running Current (Amp): 2 x 6.1
Supply Voltage: 1 ph 230v 50 hz
Inlet: ½” – 1″
Outlet: 1 ¼”
Overflow Size: 22mm
Dry Weight: 100kg
For technical charts and capacity and sizing details, please refer to the product brochure.
