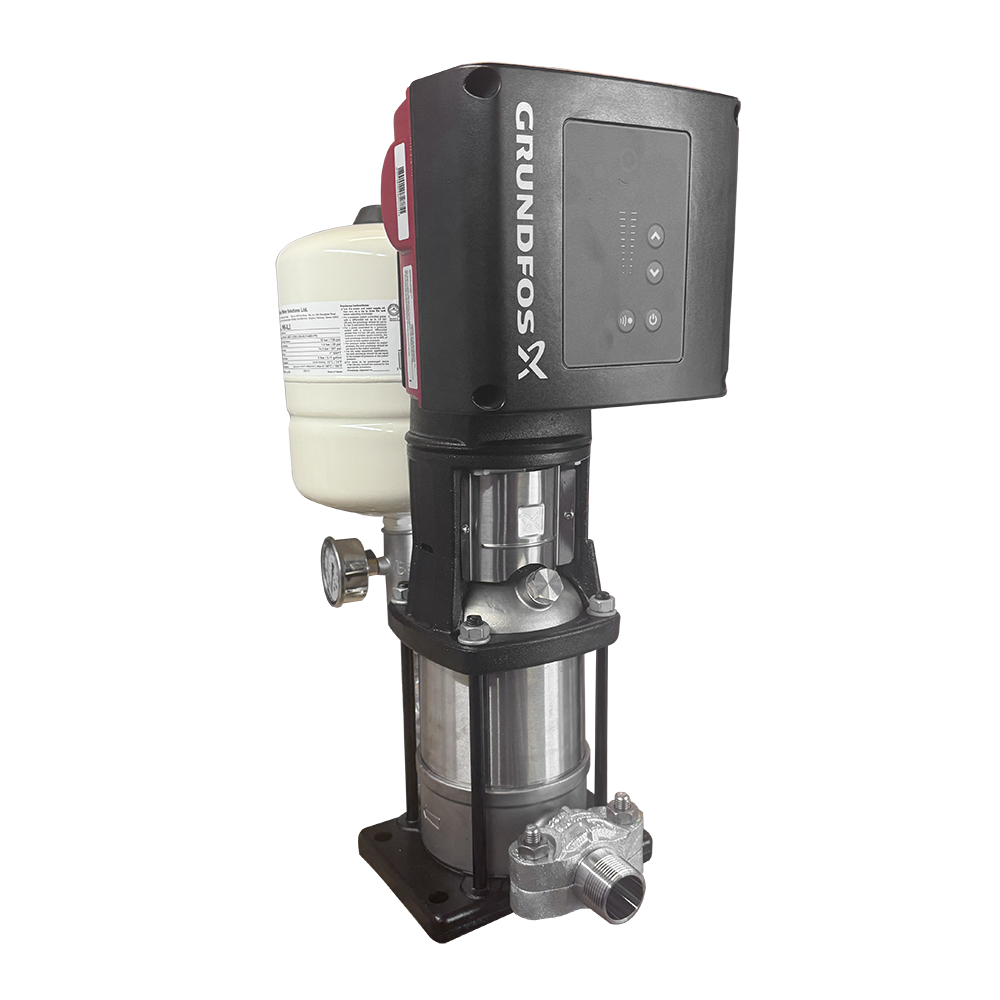

Vertical Single Cold Water Booster Set
The MYBOOST Vertical Single Cold Water Booster Set is designed for installations where space is at a premium. This system features a vertical configuration and a single pump, making it ideal for smaller properties or where horizontal space is limited, such as in apartment buildings or small commercial settings.
Key Features:
- Compact vertical design, ideal for installations with limited floor space.
- Single pump system that delivers reliable pressure for smaller buildings or single-floor commercial operations.
- Quiet operation, making it suitable for noise-sensitive environments.
- Efficient use of energy, helping to reduce operational costs.
- Space-saving design that fits into tighter spaces, including basements or utility rooms.
- Easy to install and maintain with minimal disruption to building operations.
Perfect for small to medium-sized buildings that need reliable water pressure without the bulk of larger systems. - Efficient energy use with a low environmental impact.
Product Applications:
Domestic
Commercial
Industrial
Hospitality
Specifications
Accordion Content
Model ref: MyBoost 1V CRIE 5-5
Max flow rate: 3 l/s
Max head: 63 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 5-6
Max flow rate: 3 l/s
Max head: 76 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 5-9
Max flow rate: 2.8 l/s
Max head: 112 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 10-5
Max flow rate: 4.5 l/s
Max head: 92 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 10-7
Max flow rate: 4.85 l/s
Max head: 130 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 10-10
Max flow rate: 4.3 l/s
Max head: 145 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 15-3
Max flow rate: 7.9 l/s
Max head: 76 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 15-5
Max flow rate: 8.2 l/s
Max head: 128 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
Model ref: MyBoost 1V CRIE 15-6
Max flow rate: 8.8 l/s
Max head: 152 Metres
Inlet/Outlet: DN50 / DN50
Power supply: 400V – Three Phase
Max operating pressure: 10 Bar
For technical charts and capacity and sizing details, please refer to the product brochure.
Not sure which Booster set is right for you?
Fill in our short form below about your different outlets and we will calculate the flow rate and pressure for you. We’ll then get in touch with you to help advise on the best Cold Water Booster Set for your requirements.
Know a few more spec details? Fill out our detailed booster set enquiry form and a member of the team will be in touch with you to discuss your specific needs.
